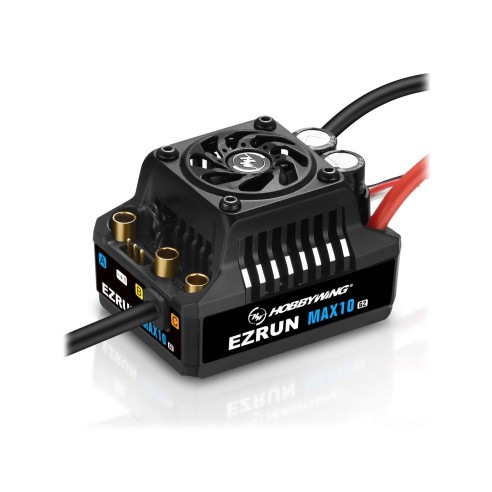

Hobbywing Ezrun MAX10 G2 ESC 140 Amp, 2-4s LiPo, BEC 5A HW30102603
The second generation of the Ezrun Max10 ESCs with 140A brings with it a variety of innovations and optimizations that make driving 1/10 short courses and trucks even more enjoyable. For example, the improved sensor mode with accompanying waterproof cable provides great throttle response - especially when paired with an Ezrun 3652/3665 G3 motor. Compared with the previous generation, MAX10 G2 also has stronger power and more stable output power. At the same time, of course, this brings excellent linearity even at low speeds.
In terms of heat development, no other ESC can beat the MAX10 G2 so quickly. Thanks to an innovative protection system, the capacity of the capacitors has also been increased by 74% and are at the same time protected against overheating. Ultimately, this ensures better power transmission from the battery to the controller and overcharging is less likely than before.
Technical Specifications
| Type: | 1/10 Brushless Sensored |
| Current (cont./peak): | 140A / 880A |
| Input Voltage: | 2-4S LiPo |
| BEC: | 6V/7.4V, 5A |
| Motor Types: | Brushless Motors (with/without sensor) |
| Motor Limits: | 3S LiPo: KV<=4000 - 3665er Motor 4S LiPo: KV<=2600 - 4268er Motor |
| Fan: | Yes, powered by BEC |
| Fan Size: | 30x30x10mm |
| Programming: | LED Program Card LCD Program Box (G2) OTA Program Module Seperate Programming Port |
| Waterproof: | Yes |
| Input: | XT60 |
| Output: | 4.00mm Gold (female) |
| Dimensions: | 53x39.5x37.2mm |
| Weight: | 120g |
| Application: | 1/10 Short Course Truck, Truck and Monster Truck |
