KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications
& Superior Holding Torque
& Incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& Programmable High torque Brushless servo
& Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
& 25T output shaft
& 2 μsec Dead Band
& 1-Year Limited Warranty
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.11 sec/60 degrees at no load
operating speed (7.4v): 0.078 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
potentiometer drive: direct drive
dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
weight: 82.0g (2.89 oz)
connector wire length: jr 300 mm

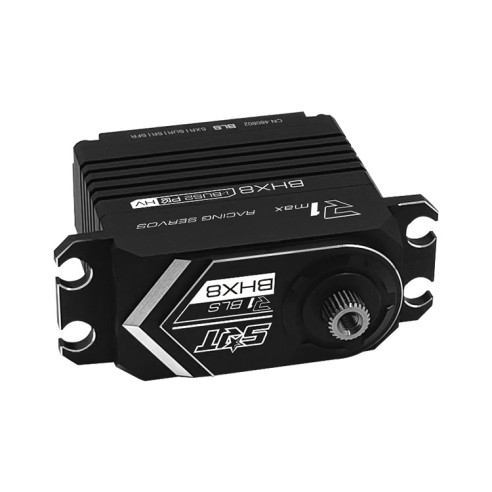

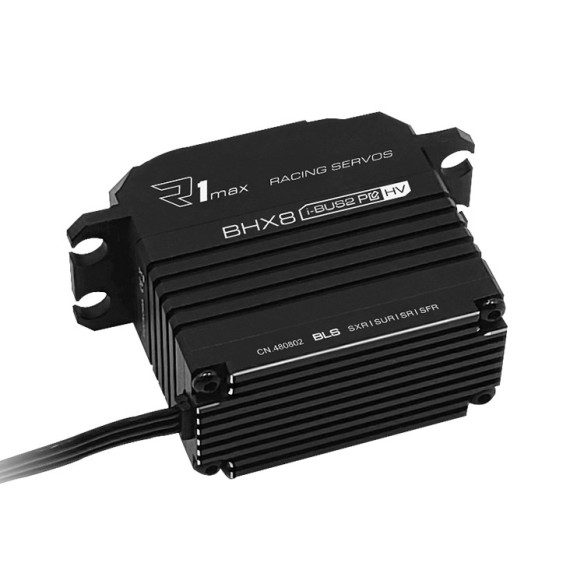

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
