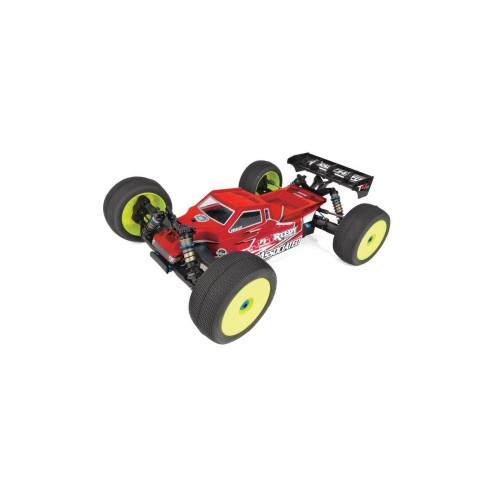

Team Associated RC8T4e Truggy Team Kit AE80948

Team Associated RC8T4e Truggy Team Kit AE80948

Name: Team Associated RC8T4e Truggy Team Kit AE80948
Brand: Associated
SKU: AE8094
Price: 689 EUR
Availability: OutOfStock

Riferimento AE8094

Non disponibile

689,00 €

IVA Inclusa

Team Associated RC8T4e Truggy Team Kit 80948

Descrizione

PUSHING THE BOUNDARIES
1:8 scale off road racing is one of the hobby's most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics' Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series. (See the listing of notable wins in Manuals & Setups.)

Features

New chassis layout featuring two saddle pack-style battery configurations. Both configurations include a centrally mounted center differential and in-line center driveshafts for superior drivetrain efficiency and equalized chassis balance.
Four battery configurations to choose from:
- Two 2S shorty LiPo batteries for lowest CG and exceptional weight bias
- Two full size "saddle pack" LiPo batteries for lowest CG and exceptional weight bias
- One 4S shorty LiPo battery for simplified setup and more centralized weight bias
- One full size LiPo battery for simplified setup and more centralized weight bias
Innovative front-end geometry with new 8 deg. steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions
New gearboxes are specific to front and rear with larger bearing sizes resulting in longer life of ring and pinion gears: Front gearbox is a 3.5 deg. inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration. Rear gearbox is a 0 deg. pinion gear angle and rear chassis brace mount.
New front shock tower design with updated suspension geometry and body mount positions for all styles of truck bodies
Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability
Front upper suspension arm updated to have bushing insert for improved fitment and performance
New rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear lip height for increased downforce, and increased strength in various areas to reduce bending fatigue
New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear-end drivetrain parts. There are three different chassis flex options using two chassis hole mounting locations and an optional turnbuckle ball for flex in more degrees of freedom.
New rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning options
+2 deg. steering block arms
V3 differentials with 46T ring and 10T pinion gears for improved gear ratios
RC8T3.2 split center diff mounts with aluminum center top plate
16mm shocks equipped with improved material locking spring cups and rod ends, V2 springs, "stiff" style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars
RC8B3.2 narrow C and D arm mounts

This vehicle needs extra parts to make it operational. Click on the Specifications link to see what extra equipment you'll need to make the vehicle operational, such as motor and battery pack.

Due to ongoing R&D, photos may not match final kit. Vehicle shown equipped with items NOT included in kit: All electronics, pinion gear, body, wheels, and tires. Assembly and painting required.

Please note there is no body included in this kit. We recommend the JConcepts F2: https://www.ruddog.eu/JConcepts-F2-1-8th-truck-body-Fits-MBX8T-RC8T32-8ight-XT

Vehicle Specifications

Power Source:	Electric
Terrain:	Off-Road
Body Style:	Yruggy Kit
Scale Size:	1:8 Scale
Assembly Level:	Kit*
Length:	560mm (22.05in)
Width:	varies
Wheelbase:	varies
Weight:	varies
Drive:	4WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required to Complete

1:8 scale electric motor
Speed control
LiPo battery
Battery charger (suited for the battery mentioned above)
2-channel surface transmitter
2-channel receiver
Steering servo
Pinion gear
1:8 Body
Wheels and tires
Lexan(R) specific spray paint for body
1:8 scale off-road wheels and tires
4x AA batteries
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer / Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler
