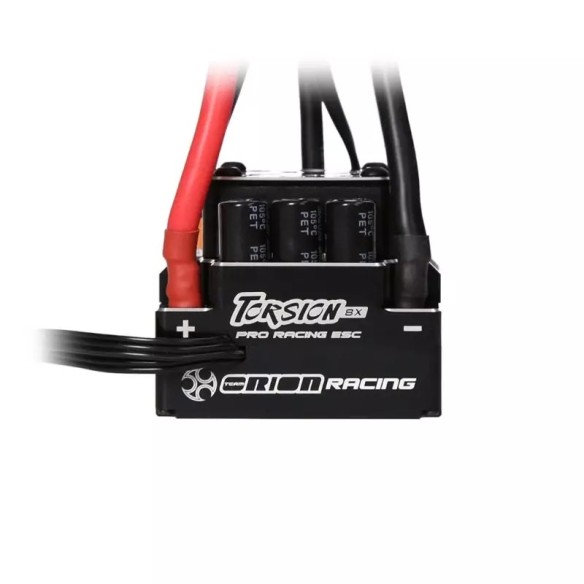

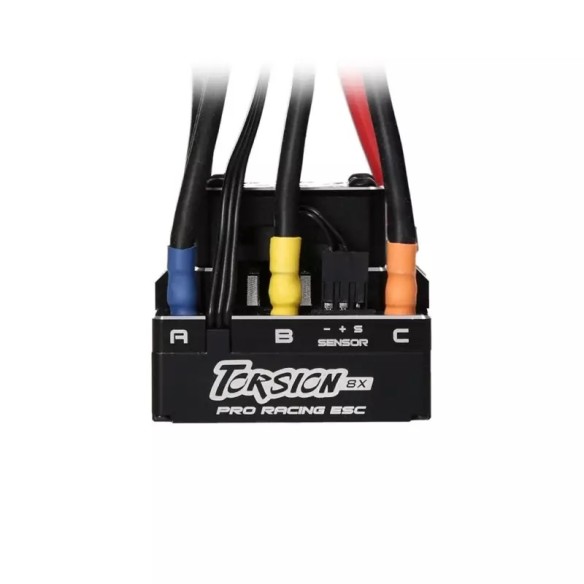

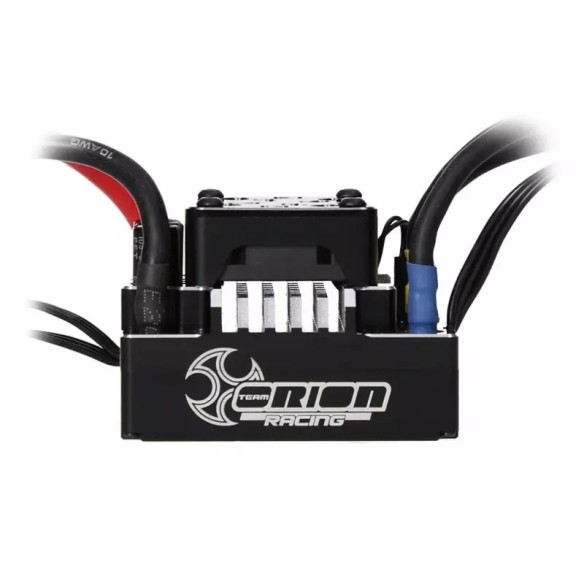

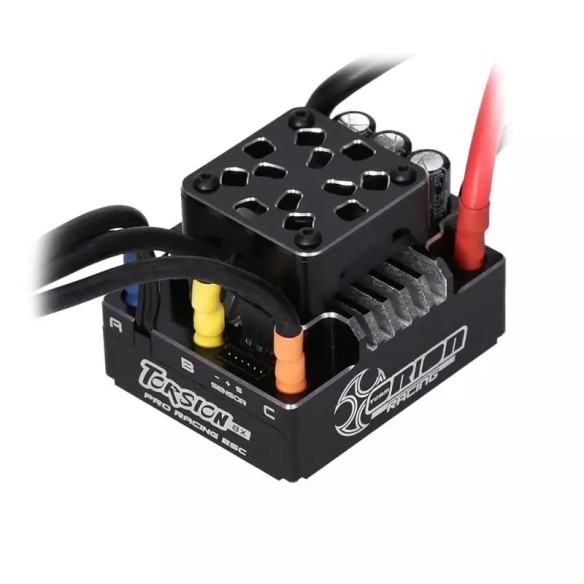

Team Orion Racing Torsion 8X Pro Racing Brushless ESC 1/8 2-6S

Team Orion Racing Torsion 8X Pro Racing Brushless ESC

ORI-65201 Team Orion Racing Torsion 8X Pro Racing Brushless ESC 1/8 2-6S

Developed for 1:8 Buggy, Truggy and On-Road competition, Team Orion Racing engineered the Torsion 8X ESC with a “No Compromise” philosophy. Our Team Drivers tested the Torsion 8X in competition at tracks in the USA and Europe, making it performance tested and perfectly suited for the highest level of performance in all 1:8 scale classes.

The Torsion 8X is a versatile and powerful ESC with a large range of precision settings, smooth throttle & brake feel, and state of the art hardware. It comes pre-programmed with settings that are suitable for most car types and racing conditions.

Features:

CNC aluminum case with integrated cooling Brake, throttle, timing and power band settings High precision throttle and brake control Extreme low resistance FET Ultra low resistance solder tabs for large gauge wires Power capacitors integrated Cooling fan 30mm Pro settling with ORI65202 Torsion Program Box By utilizing the optional Torsion Program Box (ORI65202), the performance of the Torsion 8X can be fine tuned for maximum performance. The following settings can be adjusted and saved using the Torsion Program Box: BRAKES Brake strength, frequency, drag brake, initial brake, and punch can be adjusted to reach the ultimate brake feeling. THROTTLE Frequency, punch control, and dead band settings allow fine tuning the Torsion 8X to any motor type in any vehicle to reach the ideal power band. MOTOR TIMING Timing setup is a must on larger tracks to increase power and top speed. Other adjustable features using the optional Torsion Program Box include Forward/Brake or Forward/Brake/Reverse mode, BEC voltage adjustment, Low voltage cut-off, Temperature cut-off, and Motor rotation direction.

Specification:

BEC Voltage: 6V

Continuous Current: 160A

Height: 35mm, Length: 56mm, Width: 46mm

Max Peak Current: 850A

Sensored/Sensorless: Sensored

Weight: 155g

Voltage Input: 2-6S

Motor Limit: 2800kV (4S) or 1950kV (6S)

Can be programmed with ORI65202 Team Orion Racing Torsion Program Box (Sold seperately)
