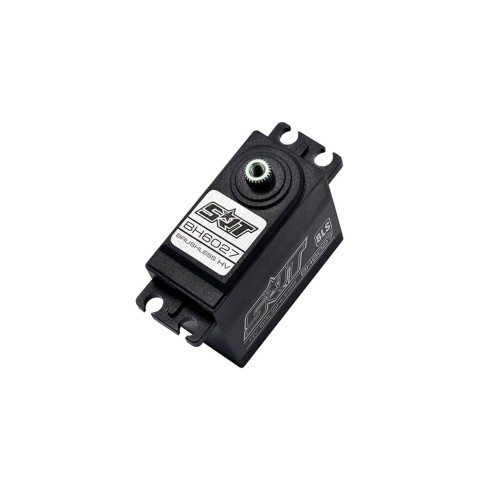

BH6027 HV Brushless Servo
KEY FEATURES
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| BH6027 | 0.10 | 21.0/291.6 | 0.08 | 25.0/347.1.0 | 0.075 | 27.0/374.9 | Titanium & Alu | Brushless | Semi-metal | 40.7*20.5*38.5 | 65.0 |
1/8 Electric/ Car
1/8 Nitro/ Car
1/10 1/8 2 4WD / Off-road
1/8 Off-road
1/10 1/8 / Off-road PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.075 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
