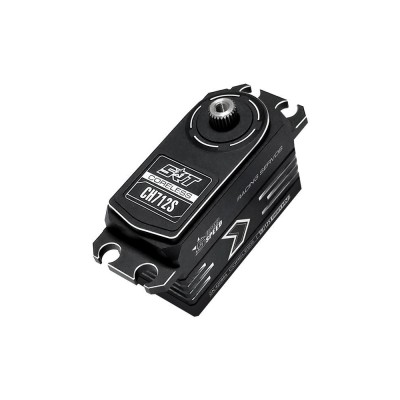

Servocomando SRT CH712S SERVO CORELESS LOW PRIFILE “SSR Mode” 8,4v Low profile
Caratteristiche
Basso profilo
Motore coreless
Case in alluminio CNC
Funzionamento da 6v a 8,4v
Controllore digitale 333Hz
Ingranaggi in titanio 25T
Contenuto della confezione
1x servo
2x squadrette singola e doppia
1x foglio adesivo sticker
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.052 sec/60 degrees at no load
operating speed (8.4v): 0.049 sec/60 degrees at no load
stall torque (6.0v): 9.8kg.cm (136.1 oz/in)
stall torque (7.4v): 11.8kg.cm (163.9 oz/in)
stall torque (8.4v): 12.6kg.cm (175.0 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
