Product information "ToolkitRC MC8 Multichecker"
The MC8 is a compact tool and measuring device. The sleek design, combined with the vibrant color IPS display, makes it easy and enjoyable to use. And with exceptional accuracy down to 5mV, this multi-checker sets a new standard in precision. Whether You're a drone enthusiast, RC car racer, or simply tech-savvy, the MC8 is the ideal companion for battery testing and monitoring.
Features:
- Measures and balances lithium batteries
- Measurement and output of different signals (PWM, PPM, SBUS)
- Wide input voltage range with DC 7.0-35.0V
- Includes main, balance, and signal inputs
- USB-A, USB-C dual output
- USB-C 20 PD fast charging output
- Overcharge protection
Technical Specifications:
| Main Port: | XT60 7.0V-35.0V |
| Signal Port: | <6.0V |
| Balance Port: | 0.5V-5.0V Lixx, 2-8S |
| Balance Current: | max. 60mA, 2-8S |
| Balancer-Accuracy: | <0.005V, 4.2V |
| USB-A Output: | 5.0V, 1.0A Firmware Upgrade |
| USB-C Output: | 5.0V-12.0V, max. 20W |
| USB-C Protocol: | PD3.0, QC3.0, AFC, SCP, FCP |
| Display: | LCD, IPS 2.0'', 240x240px |
| Dimensions: | 68x50x15mm |
| Weight: | 50g |
Measurement & Output:
| Measurement | PWM | 500us-2500us, 20-400Hz |
| PPM | 880us-2200us x8 CH, 20-50Hz | |
| SBUS | 880us-2200us x16 CH, 20-100Hz | |
| Output | PWM | 1000us-2000us, 20-1000Hz |
| PPM | 880us-2200us x8 CH, 50Hz | |
| SBUS | 880us-2200us x16 CH, 74Hz |

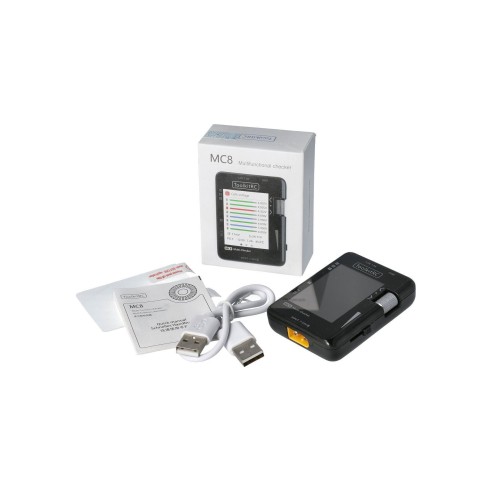

Delivery:
1x MC8 Multichecker
1x USB Cable
1x Display protection
1x Manual
